Specs

Product Specifications

Current specifications for RadGnaRack products and configurations.

Folding Modular Long attachment Bar + Double All Bike

Bike capacity: 2 bikes
Total payload: 250 lb
Hitch requirements: 2-inch hitch receiver required. An adaptor is not recommended. Do not use a 1.25-inch receiver.
Tire width compatibility: 1 to 5 in
Bike type compatibility: E-bikes, Fat bikes, Mountain bikes, Cargo bikes, Road bikes
Crank compatibility: Bikes are secured by the crank arm in the Crank Holder slot. Choose "60 lbs or heavier" for most bikes and e-bikes (up to 125 lb per bike); "Lighter than 60 lbs" fits a wide range of cranks on lighter bikes. If your crank looks unusual, send us photos before you order.
Folding: Yes
Side-swinging rear doors / rear spare tire: Yes
Clearance requirements: For vehicles with less than 14 in between the hitch receiver and the ground. Can flip inversely for lifted vehicles.
Compatibility warnings: Compare the combined weight of the rack and bikes to your hitch tongue-weight rating and your vehicle's hitch rating.
Product family: High Modular
Configuration type: folding long bar + double all-bike rack

Bike capacity: 1 bike
Total payload: 125 lb
Hitch requirements: 2-inch hitch receiver required. An adaptor is not recommended. Do not use a 1.25-inch receiver.
Tire width compatibility: 1 to 5 in
Bike type compatibility: E-bikes, Fat bikes, Mountain bikes, Cargo bikes, Road bikes
Crank compatibility: Bikes are secured by the crank arm in the Crank Holder slot. Choose "60 lbs or heavier" for most bikes and e-bikes (up to 125 lb per bike); "Lighter than 60 lbs" fits a wide range of cranks on lighter bikes. If your crank looks unusual, send us photos before you order.
Folding: No
Side-swinging rear doors / rear spare tire: No
Clearance requirements: For vehicles with less than 14 in between the hitch receiver and the ground. Can flip inversely for lifted vehicles.
Compatibility warnings: Compare the combined weight of the rack and bikes to your hitch tongue-weight rating and your vehicle's hitch rating.
Product family: High Modular
Configuration type: short bar + single all-bike rack

Bike capacity: 2 bikes
Component load rating: 500 lb
Weight: 15 lb

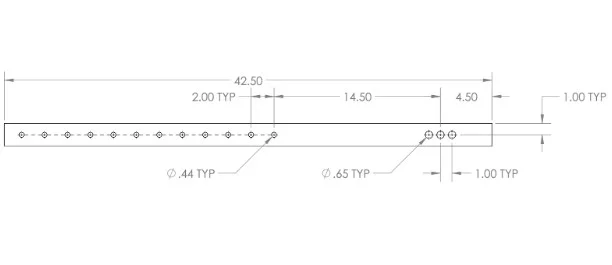

Dimensions: L 42.5 in
Hitch requirements: 2-inch hitch receiver required. An adaptor is not recommended. Do not use a 1.25-inch receiver.
Folding: Yes
Clearance requirements: For vehicles with less than 14 in between the hitch receiver and the ground. Can flip inversely for lifted vehicles.
Compatibility warnings: Compare the combined weight of the rack and bikes to your hitch tongue-weight rating and your vehicle's hitch rating.
Product family: High Modular
Configuration type: folding modular bar

Bike capacity: 2 bikes
Total payload: 250 lb
Component load rating: 125 lb
Weight: 55 lb
Hitch requirements: 2-inch hitch receiver required. An adaptor is not recommended. Do not use a 1.25-inch receiver.
Tire width compatibility: 1 to 5 in
Bike type compatibility: E-bikes, Fat bikes, Mountain bikes, Cargo bikes, Road bikes
Crank compatibility: Bikes are secured by the crank arm in the Crank Holder slot. Choose "60 lbs or heavier" for most bikes and e-bikes (up to 125 lb per bike); "Lighter than 60 lbs" fits a wide range of cranks on lighter bikes. If your crank looks unusual, send us photos before you order.
Folding: No
Side-swinging rear doors / rear spare tire: No
Clearance requirements: For vehicles with less than 14 in between the hitch receiver and the ground. Can flip inversely for lifted vehicles.
Compatibility warnings: Compare the combined weight of the rack and bikes to your hitch tongue-weight rating and your vehicle's hitch rating.
Product family: High Modular
Configuration type: High long bar + two all-bike racks

Bike capacity: 1 bike
Total payload: 125 lb
Hitch requirements: 2-inch hitch receiver required. An adaptor is not recommended. Do not use a 1.25-inch receiver.
Tire width compatibility: 1 to 5 in
Bike type compatibility: E-bikes, Fat bikes, Mountain bikes, Cargo bikes, Road bikes
Crank compatibility: Bikes are secured by the crank arm in the Crank Holder slot. Choose "60 lbs or heavier" for most bikes and e-bikes (up to 125 lb per bike); "Lighter than 60 lbs" fits a wide range of cranks on lighter bikes. If your crank looks unusual, send us photos before you order.
Folding: No
Side-swinging rear doors / rear spare tire: No
Clearance requirements: For vehicles with more than 14 in between the hitch receiver and the ground. Can flip inversely for lifted vehicles.
Compatibility warnings: Compare the combined weight of the rack and bikes to your hitch tongue-weight rating and your vehicle's hitch rating.
Product family: Low Modular
Configuration type: short bar + single all-bike rack

Bike capacity: 2 bikes
Total payload: 250 lb
Hitch requirements: 2-inch hitch receiver required. An adaptor is not recommended. Do not use a 1.25-inch receiver.
Tire width compatibility: 1 to 5 in
Bike type compatibility: E-bikes, Fat bikes, Mountain bikes, Cargo bikes, Road bikes
Crank compatibility: Bikes are secured by the crank arm in the Crank Holder slot. Choose "60 lbs or heavier" for most bikes and e-bikes (up to 125 lb per bike); "Lighter than 60 lbs" fits a wide range of cranks on lighter bikes. If your crank looks unusual, send us photos before you order.
Folding: No
Side-swinging rear doors / rear spare tire: No
Clearance requirements: For vehicles with more than 14 in between the hitch receiver and the ground. Can flip inversely for lifted vehicles.
Compatibility warnings: Compare the combined weight of the rack and bikes to your hitch tongue-weight rating and your vehicle's hitch rating.
Product family: Low Modular
Configuration type: long bar + double all-bike rack
